Ansible2.7用にplaybook.ymlをリライト



構成

• Ansibleサーバ 192.168.11.100
• WEBサーバ 192.168.11.101
• DBサーバ 192.168.11.102





Ansibleサーバ



SELuinux無効化

# vi /etc/sysconfig/selinux


#SELINUX=enforcing
SELINUX=disabled



# reboot now



Ansible設定の為のモジュールのインストール

yum -y install epel-release
yum -y install ansible
yum -y install MySQL-python
yum -y install libselinux-python
yum -y install rsync



Ansibleバージョン確認

# ansible --version

ansible 2.7.7
  config file = /etc/ansible/ansible.cfg
  configured module search path = [u'/root/.ansible/plugins/modules', u'/usr/share/ansible/plugins/modules']
  ansible python module location = /usr/lib/python2.7/site-packages/ansible
  executable location = /usr/bin/ansible
  python version = 2.7.5 (default, Apr 11 2018, 07:36:10) [GCC 4.8.5 20150623 (Red Hat 4.8.5-28)]



SSH鍵作成

# ssh-keygen -t rsa -b 4096

Generating public/private rsa key pair.
Enter file in which to save the key (/root/.ssh/id_rsa):
Created directory '/root/.ssh'.
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /root/.ssh/id_rsa.
Your public key has been saved in /root/.ssh/id_rsa.pub.
The key fingerprint is:
SHA256:fi4ba5Ab5i5klIl6Fz8g9qCOy3ubi75+k8fcENnoBBg root@localhost.localdomain
The key's randomart image is:
+---[RSA 4096]----+
| Eo              |
| . .             |
|   ..o+          |
|  = *= .         |
| + =o+..S        |
|o . =oB.         |
|o. ++oo=o .      |
|o..=o+o.o=       |
|+O=+=o..oo.      |
+----[SHA256]-----+



SSHホスト設定

# vi .ssh/config


Host bizApp-web
    HostName 192.168.11.101

host bizApp-db
    HostName 192.168.11.102



WEBサーバに鍵を渡す

# ssh-copy-id bizApp-web

/usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/root/.ssh/id_rsa.pub"
The authenticity of host '192.168.11.101 (192.168.11.101)' can't be established.
ECDSA key fingerprint is SHA256:JpG2bOFgglNSHRO3LPONQ7iJPQI1cuqYFL/PFlvfq7s.
ECDSA key fingerprint is MD5:97:7b:6f:35:cc:9d:09:86:78:f9:48:29:72:4e:ac:b7.
Are you sure you want to continue connecting (yes/no)? yes
/usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed
/usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys
root@192.168.11.101's password:

Number of key(s) added: 1

Now try logging into the machine, with:   "ssh 'bizApp-web'"
and check to make sure that only the key(s) you wanted were added



DBサーバにも鍵を渡す

# ssh-copy-id bizApp-db



ホスト設定

# vi /etc/ansible/hosts


[web]
192.168.11.101

[db]
192.168.11.102



疎通確認

# ansible all -i /etc/ansible/hosts -m ping

192.168.11.102 | SUCCESS => {
    "changed": false,
    "ping": "pong"
}
192.168.11.101 | SUCCESS => {
    "changed": false,
    "ping": "pong"
}



Ansibleサーバ用ディレクトリ作成

# mkdir -p /etc/ansible/cp.example.net/v1/{web,db}
# mkdir -p /etc/ansible/cp.example.net/v1/web/etc/nginx/conf.d



Nginxバーチャルホストファイル作成



# vi /etc/ansible/cp.example.net/v1/web/etc/nginx/conf.d/laravel.conf


server {
  server_tokens off;

  root /var/www/vhosts/cp.example.net/httpdocs/laravel/public;

  listen 80 default_server;
  server_name _;

  location / {
    index index.php index.html;
    try_files $uri $uri/ /index.php?$query_string;
  }

  location ~ \.php$ {
    fastcgi_pass unix:/var/run/php-fpm/php-fpm.sock;
    fastcgi_index index.php;
    include /etc/nginx/fastcgi_params;
    fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
  }
}

vsftpdの設定



mkdir -p /etc/ansible/cp.example.net/v1/web/etc/vsftpd/
mkdir /etc/ansible/cp.example.net/v1/web/etc/vsftpd/user_conf
touch /etc/ansible/cp.example.net/v1/web/etc/vsftpd/chroot_list





# vi /etc/ansible/cp.example.net/v1/web/etc/vsftpd/user_conf/webadmin

local_root=/var/www/vhosts





# vi /etc/ansible/cp.example.net/v1/web/etc/vsftpd/vsftpd.conf


local_enable=YES
write_enable=YES
local_umask=022
dirmessage_enable=YES
connect_from_port_20=YES
xferlog_std_format=YES
listen=YES
listen_ipv6=NO
pam_service_name=vsftpd
userlist_enable=YES
tcp_wrappers=YES
anonymous_enable=NO

ascii_upload_enable=YES
ascii_download_enable=YES
ftpd_banner=Welcome to blah FTP service.

chroot_local_user=YES
chroot_list_enable=YES
chroot_list_file=/etc/vsftpd/chroot_list

ls_recurse_enable=YES
pam_service_name=vsftpd
tcp_wrappers=YES

userlist_deny=NO


pasv_min_port=50000
pasv_max_port=50030

chroot_local_user=YES

force_dot_files=YES

xferlog_file=/var/log/vsftpd.log
xferlog_std_format=NO
log_ftp_protocol=YES


#ssl_enable=YES
#pasv_addr_resolve=YES

pasv_address=
#rsa_cert_file=/etc/pki/tls/certs/ftp.pem
#require_ssl_reuse=NO
#force_local_logins_ssl=NO
#force_local_data_ssl=NO
#port_enable=YES
#allow_anon_ssl=NO

use_localtime=YES

allow_writeable_chroot=YES

user_config_dir=/etc/vsftpd/user_conf
#listen_port=21





# vi /etc/ansible/cp.example.net/v1/web/etc/vsftpd/user_list


# vsftpd userlist
# If userlist_deny=NO, only allow users in this file
# If userlist_deny=YES (default), never allow users in this file, and
# do not even prompt for a password.
# Note that the default vsftpd pam config also checks /etc/vsftpd/ftpusers
# for users that are denied.
root
bin
daemon
adm
lp
sync
shutdown
halt
mail
news
uucp
operator
games
nobody
webadmin



変数ファイル作成

# vi /etc/ansible/cp.example.net/v1/var_yml


---
usergroup:
  user:
    name: webadmin
    group: nginx
    password: password
app_path: "/var/www/vhosts/cp.example.net/httpdocs/laravel"
mysql_root_password: rootpassword
ssh_port: 22
mynetwork: 192.168.11.0/24
dbName: bizdb
dbUser: bizdbuser
dbPassword: bizdbpassword



playbook.ymlの設定

# vi /etc/ansible/cp.example.net/v1/playbook.yml


---
- hosts: web
  become: yes
  vars_files:
    - var_yml
  tasks:
    - name: Firewalldの状態チェック
      command: systemctl is-active firewalld
      register: firewalld_result
      changed_when: False
      ignore_errors: True

    - name: Firewalldの起動, 自動起動設定
      service: name=firewalld state=started enabled=yes

    - name: Firewalld設定 80許可
      firewalld: permanent=True port=80/tcp  state=enabled immediate=true
    - name: Firewalld設定 443許可
      firewalld: permanent=True port=443/tcp state=enabled immediate=true
    - name: Firewalld設定 21許可
      firewalld: permanent=True port=21/tcp state=enabled immediate=true
    - name: Firewalld設定 50000-50030許可
      firewalld: permanent=True port=50000-50030/tcp state=enabled immediate=true



    - name: EPEL, remi リポジトリの追加
      yum:
        name:  "{{ package }}"
        state: latest
      vars:
        package:
          - epel-release
          - http://rpms.famillecollet.com/enterprise/remi-release-7.rpm
          - http://nginx.org/packages/centos/7/noarch/RPMS/nginx-release-centos-7-0.el7.ngx.noarch.rpm



    - name: Basicツールのインストール
      yum:
        name:  "{{ package }}"
        state: latest
      vars:
        package:
          - zip
          - unzip
          - git

    - name: Nginxのインストール
      yum:
        name:  "{{ package }}"
        state: latest
      vars:
        package:
          - nginx


    - name: WEBユーザの作成.1 Salt作成
      shell: "mktemp -u | awk '{print substr($0, length($0)-8+1)}'"
      register: salt

    - name: WEBユーザの作成.2 パスワード用ハッシュ作成
      shell: python -c 'import crypt; print crypt.crypt("{{ usergroup.user.password }}", "$6${{ salt.stdout }}")'
      register: hash_password

    - name: WEBユーザの作成.3 ユーザ作成
      user: name={{ usergroup.user.name }} password={{ hash_password.stdout }} groups={{usergroup.user.group}}



    - name: MariaDBクライアントインストール
      yum:
        name:  "{{ package }}"
        state: latest
      vars:
        package:
          - MySQL-python
          - mariadb

    - name: PHPをインストール
      yum:
        name:  "{{ package }}"
        state: latest
        enablerepo: remi-php71
      vars:
        package:
          - php
          - php-mysql
          - php-mbstring
          - php-gd
          - php-devel
          - php-xml
          - php-pdo
          - php-fpm
          - php-mcrypt
          - php-zip


    - name: PHPのタイムゾーン設定
      replace:
        dest: /etc/php.ini
        regexp: "{{ item.regexp }}"
        replace: "{{ item.replace }}"
      with_items:
        - { regexp: "^;date.timezone =", replace: "date.timezone = Asia/Tokyo" }
        - { regexp: "^expose_php = On", replace: "expose_php = Off" }

    - name: PHP 最大アップロード設定, メモリ設定
      replace:
        dest: /etc/php.ini
        regexp: "{{ item.regexp }}"
        replace: "{{ item.replace }}"
      with_items:
        - { regexp: "^upload_max_filesize = .*$", replace: "upload_max_filesize = 256M" }
        - { regexp: "^memory_limit = .*$", replace: "memory_limit = 256M" }

    - name: PHP-FPM設定
      replace:
        dest: /etc/php-fpm.d/www.conf
        regexp: "{{ item.regexp }}"
        replace: "{{ item.replace }}"
      with_items:
        - { regexp: "^user = apache", replace: "user = {{ usergroup.user.name }}" }
        - { regexp: "^group = apache", replace: "group = nginx" }
        - { regexp: "^listen = 127.0.0.1:9000", replace: "listen = /var/run/php-fpm/php-fpm.sock" }
        - { regexp: "^;listen.owner = nobody", replace: "listen.owner = {{ usergroup.user.name }}" }
        - { regexp: "^;listen.group = nobody", replace: "listen.group = nginx" }


    - name: PHP-FPMの起動
      systemd:
        name: php-fpm.service
        state: restarted
        daemon_reload: yes
        enabled: yes

    - name: APPフォルダ作成
      file: path="{{ app_path }}" state=directory owner=root group=root mode=0755


    - name: Nginx設定 Ansibleサーバから設定ファイルを複製
      copy:
        src: "{{ item }}"
        dest: /etc/nginx/conf.d/
        owner: root
        group: root
        mode: 0644
      with_fileglob:
      - "./web/etc/nginx/conf.d/*.conf"

    - name: Nginx設定 ユーザ指定
      replace:
        dest: /etc/nginx/nginx.conf
        regexp: "{{ item.regexp }}"
        replace: "{{ item.replace }}"
      with_items:
        - { regexp: "^user nginx;", replace: "user = {{ usergroup.user.name }};" }


    - name: Nginxの起動
      systemd:
        name: nginx.service
        state: restarted
        daemon_reload: yes
        enabled: yes

    - name: Composerのインストール
      command: "{{ item }}"
      with_items:
        - php -r "copy('https://getcomposer.org/installer', 'composer-setup.php');"
        - php composer-setup.php
        - php -r "unlink('composer-setup.php');"
        - mv composer.phar /usr/local/bin/composer
        - /usr/local/bin/composer global require laravel/installer

    - name: Laravelプロジェクトの作成
      command: /usr/local/bin/composer create-project --prefer-dist laravel/laravel {{ app_path }}



    - name: バーチャルホストディレクトリの権限変更
      file:
        path: /var/www/vhosts
        owner: "{{ usergroup.user.name }}"
        group: nginx
        recurse: yes

    - name: Laravelパーミッション設定1
      file:
        path: "{{ app_path }}/{{ item }}"
        mode: 0755
        recurse: yes
      with_items:
        - storage
        - bootstrap/cache




    - name: vsftpdインストール
      yum:
        name:  "{{ package }}"
        state: latest
      vars:
        package:
          - vsftpd


    - name: vsftpd設定 Ansibleサーバから設定ファイルを複製
      synchronize: src=./web/etc/vsftpd/ dest=/etc/vsftpd/

    - name: vsftpd設定
      replace:
        dest: /etc/vsftpd/vsftpd.conf
        regexp: "{{ item.regexp }}"
        replace: "{{ item.replace }}"
      with_items:
        - { regexp: "^pasv_address=", replace: "pasv_address={{ ansible_default_ipv4.address }}" }

    - name: vsftpd起動
      systemd:
        name: vsftpd.service
        state: restarted
        daemon_reload: yes
        enabled: yes


- hosts: db
  become: yes
  vars_files:
    - var_yml
  tasks:


    - name: EPELリポジトリの追加
      yum:
        name:  "{{ package }}"
        state: latest
      vars:
        package:
          - epel-release


    - name: MariaDB インストール
      yum:
        name:  "{{ package }}"
        state: latest
      vars:
        package:
          - MySQL-python
          - mariadb
          - mariadb-libs
          - mariadb-server
          - mariadb-devel



    - name: MySQL起動, 自動起動
      service: name=mariadb state=started enabled=yes

    - name: DBの作成
      mysql_db: name={{ dbName }} state=present

    - name: DBユーザの作成
      mysql_user: name={{ dbUser }} password={{ dbPassword }} priv={{ dbName }}.*:ALL state=present host={{item}}
      with_items:
        - '%'
        - 'localhost'
        - '127.0.0.1'


    - name: ローカル接続制限無効化
      replace: >
        dest=/etc/my.cnf
        regexp='^bind-address'
        replace='#bind-address'


    - name: MySQL再起動, 自動起動
      service: name=mariadb state=restarted enabled=yes


    - name: Apache, PHPインストール
      yum:
        name:  "{{ package }}"
        state: latest
      vars:
        package:
          - httpd
          - php
          - php-mbstring
          - php-mysql
          - php-mcrypt


    - name: phpMyAdminインストール
      yum:
        name:  "{{ package }}"
        state: latest
      vars:
        package:
          - phpMyAdmin


    - name: phpMyAdminアクセス権限の変更 ローカルネットワークのアクセス許可
      replace:
        dest: /etc/httpd/conf.d/phpMyAdmin.conf
        regexp: "{{ item.regexp }}"
        replace: "{{ item.replace }}"
      with_items:
        - { regexp: "Require ip 127.0.0.1", replace: "Require ip 127.0.0.1 {{ mynetwork }}" }


    - name: PHP 最大アップロード設定
      replace:
        dest: /etc/php.ini
        regexp: "{{ item.regexp }}"
        replace: "{{ item.replace }}"
      with_items:
        - { regexp: "^upload_max_filesize = .*$", replace: "upload_max_filesize = 256M" }
        - { regexp: "^memory_limit = .*$", replace: "memory_limit = 256M" }


    - name: Apache起動, 自動起動
      service: name=httpd state=restarted enabled=yes

    - name: Firewalldの起動, 自動起動設定
      service: name=firewalld state=started enabled=yes

    - name: Firewalld設定 3306許可 ローカルネットワークのみDBへの接続許可
      firewalld: permanent=True port=3306/tcp source={{ mynetwork }} state=enabled immediate=true
    - name: Firewalld設定 80許可 phpMyAdmin用
      firewalld: permanent=True port=80/tcp state=enabled immediate=true

    - name: Firewalldの再起動, 自動起動設定
      service: name=firewalld state=restarted enabled=yes






- hosts: all
  become: yes
  vars_files:
    - var_yml
  remote_user: root
  tasks:


    - name: yumアップデート
      yum: name=* state=latest


    - name: SELinux-1. SELinux用のPythonモジュールをインストール
      yum: name=libselinux-python state=installed

    - name: SELinux-2. SELinuxの無効化
      selinux: state=disabled
      register: selinux

    - name: SELinux-3. サーバの再起動
      shell: sleep 2 && shutdown -r now
      async: 1
      poll: 0
      become: true
      ignore_errors: true

    - name: SELinux-4. サーバの起動を待つ
      wait_for_connection:
        delay: 30
        timeout: 300

    - name: SELinux-5. 疎通確認
      ping:



構文チェック
# ansible-playbook /etc/ansible/cp.example.net/v1/playbook.yml --syntax-check

ドライラン
# ansible-playbook /etc/ansible/cp.example.net/v1/playbook.yml --check



実行

# ansible-playbook /etc/ansible/cp.example.net/v1/playbook.yml



http://192.168.11.101/

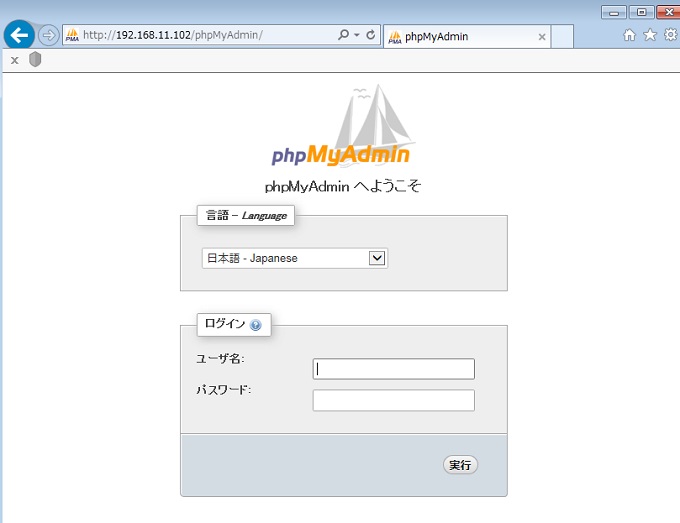

http://192.168.11.102/phpMyAdmin/
