GCP CloudRun + ESPv2によるAPI Gatewayリバースプロキシの作成 CloudFunctions+BigQuery+CloudRun+ESPv2+独自ドメイン

| by 優

GCP



関連





完成図

クライアント <-> Route53 ... 名前解決
クライアント → CloudRun(API GatewayとしてのプロキシDockerコンテナ「ESPv2」を動かすコンテナを動作させる基盤) -> CloudFunctions



おおまかな作業概要

  1. プロキシサーバとなるコンテナイメージを作成
  2. CloudRunにコンテナイメージをデプロイ
  3. ドメインマッピングによって独自ドメインに対応し無料HTTPS証明書を仕込む



目的

  • 独自ドメインとCloudFunctionsを結びつける



GCPから動的にURLで作成されたものをもしアプリに埋め込んでしまうと、リソースを万が一誤って削除した場合に、URLの再現性ができないので。削除してしまったリソースURLを利用していたバージョンのアプリが死んでしまう🐱 💦



変数定義

REGION=asia-northeast1
PROJECT_ID=test-cloud-functions-20211208
FUNCTIONS_NAME= storeLoginHistory
CLOUD_RUN_SERVICE_NAME=api-gateway

リージョン設定

$ gcloud config set run/region $REGION



APIを有効化させておく

$ gcloud services enable servicemanagement.googleapis.com
$ gcloud services enable servicecontrol.googleapis.com
$ gcloud services enable endpoints.googleapis.com





# Helloプログラムをデプロイ
$ export CLOUD_RUN_SERVICE_NAME=api-gateway
$ export PROJECT_ID=test-cloud-functions-20211208
$ gcloud run deploy $CLOUD_RUN_SERVICE_NAME \
    --image="gcr.io/cloudrun/hello" \
    --allow-unauthenticated \
    --platform managed \
    --project=$PROJECT_ID


    Deploying container to Cloud Run service [api-gateway] in project [test-cloud-functions-20211208] region [asia-northeast1]
✓ Deploying new service... Done.
  ✓ Creating Revision... Revision deployment finished. Waiting for health check to begin.
  ✓ Routing traffic...
  ✓ Setting IAM Policy...
Done.
Service [api-gateway] revision [api-gateway-00001-peh] has been deployed and is serving 100 percent of traffic.
Service URL: https://api-gateway-dsbamy37za-an.a.run.app

Service URLの「api-gateway-dsbamy37za-an.a.run.app」がCloudRunをデプロイする先になるので変数に入れます。



変数定義

CLOUD_RUN_HOSTNAME=api-gateway-dsbamy37za-an.a.run.app

gcp-test-kanehiro.sample-dev.work.yaml

swagger: '2.0'
info:
  title: sample Cloud Endpoints + GCF
  description: :-)
  version: 1.0.0
host: api-gateway-dsbamy37za-an.a.run.app ●🐱 ここ！
schemes:
  - https
produces:
  - application/json
paths:
  /api/v1/storeLoginHistory: ●🐱 ここ！
    post:
      summary: store Login History
      operationId: storeLoginHistory
      x-google-backend:
        address: https://asia-northeast1-test-cloud-functions-20211208.cloudfunctions.net/storeLoginHistory ●🐱 ここ！
      responses:
        '200':
          description: A successful response

実際のもの

swagger: '2.0'
info:
  title: sample Cloud Endpoints + GCF
  description: :-)
  version: 1.0.0
host: api-gateway-dsbamy37za-an.a.run.app
schemes:
  - https
produces:
  - application/json
paths:
  /api/v1/storeLoginHistory:
    post:
      summary: store Login History
      operationId: storeLoginHistory
      x-google-backend:
        address: https://asia-northeast1-test-cloud-functions-20211208.cloudfunctions.net/storeLoginHistory ●🐱 ここ！
      responses:
        '200':
          description: A successful response





$ gcloud config set project $PROJECT_ID
$ gcloud endpoints services deploy gcp-test-kanehiro.sample-dev.work.yaml \
    --project $PROJECT_ID


Waiting for async operation operations/services.api-gateway-dsbamy37za-an.a.run.app-0 to complete...
Waiting for async operation operations/serviceConfigs.api-gateway-dsbamy37za-an.a.run.app:a0c98aa8-5a8a-4837-aa35-f8227b70823b to complete...
Operation finished successfully. The following command can describe the Operation details:
 gcloud endpoints operations describe operations/serviceConfigs.api-gateway-dsbamy37za-an.a.run.app:a0c98aa8-5a8a-4837-aa35-f8227b70823b

Waiting for async operation operations/rollouts.api-gateway-dsbamy37za-an.a.run.app:2796de89-4484-4a1e-9580-8acc410de389 to complete...
Operation finished successfully. The following command can describe the Operation details:
 gcloud endpoints operations describe operations/rollouts.api-gateway-dsbamy37za-an.a.run.app:2796de89-4484-4a1e-9580-8acc410de389

Enabling service [api-gateway-dsbamy37za-an.a.run.app] on project [test-cloud-functions-20211208]...
Operation "operations/acf.p2-904657856192-25941cc1-94f1-4ad3-bbe9-cdbb6dcc00c4" finished successfully.


Service Configuration [2021-12-09r0] uploaded for service [api-gateway-dsbamy37za-an.a.run.app] ●🐱 ここ

To manage your API, go to: https://console.cloud.google.com/endpoints/api/api-gateway-dsbamy37za-an.a.run.app/overview?project=test-cloud-functions-20211208





Service Configuration [2021-12-09r0]

[]の中の値が重要

変数定義

CONFIG_ID=2021-12-09r0



サービスの有効化

gcloud services enable servicemanagement.googleapis.com
gcloud services enable servicecontrol.googleapis.com
gcloud services enable endpoints.googleapis.com
gcloud services enable $CLOUD_RUN_HOSTNAME



ドメインの検証





$ gcloud domains verify gcp-test-kanehiro.sample-dev.work

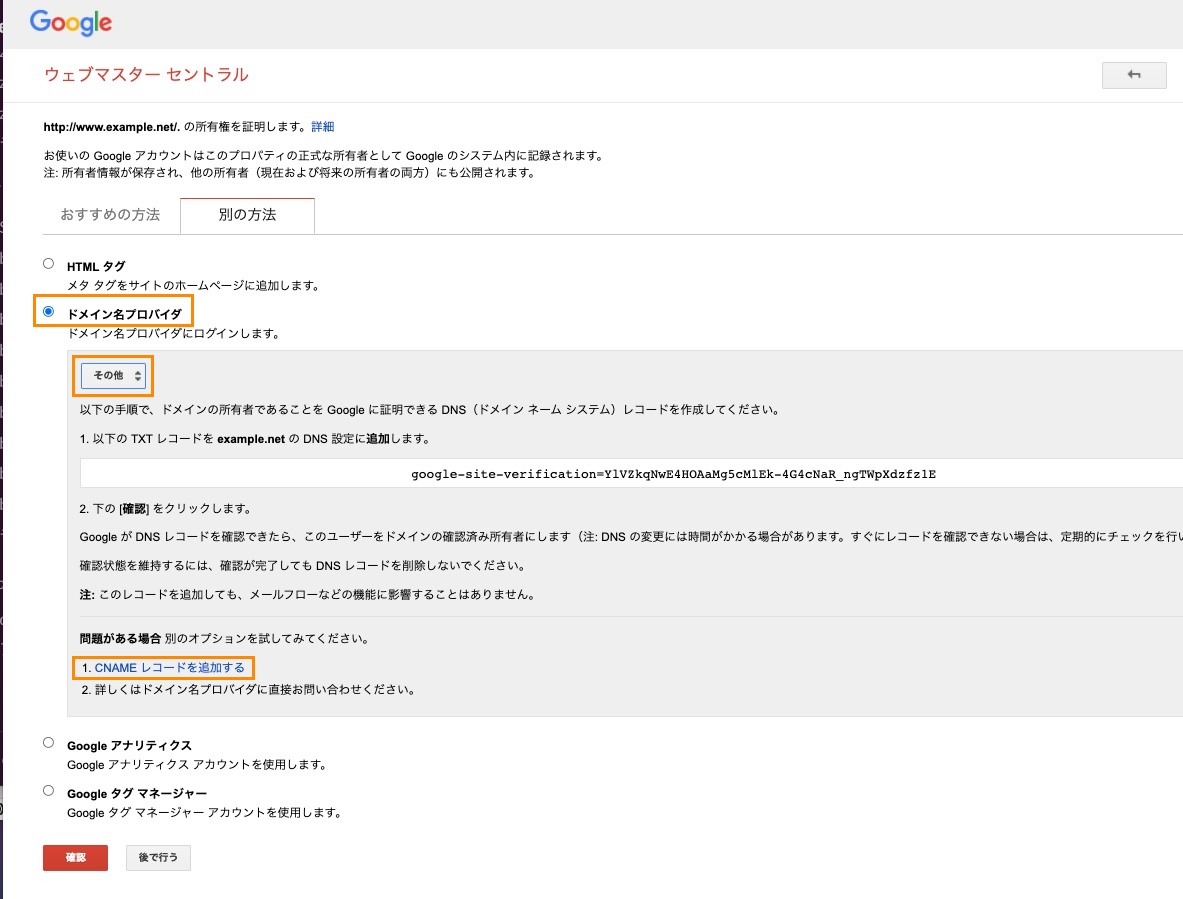

CNAMEを利用して検証すると良いかと思います

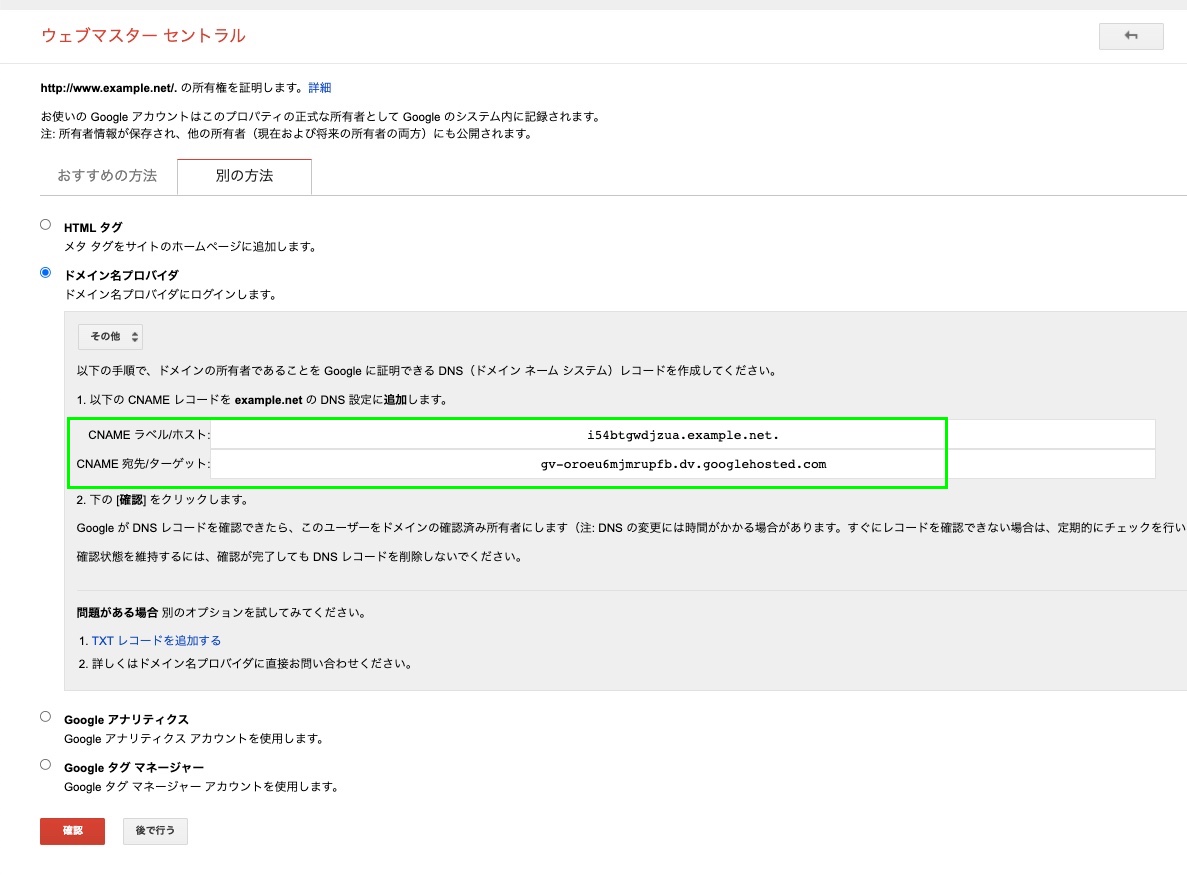

緑の値をDNSサーバに設定し、下記のサイトで反映されたか確認をクリックします。

https://dnschecker.org/







問題がなければ確認を押して認証を終えます。



ESPv2を動かす





$ git clone https://github.com/GoogleCloudPlatform/esp-v2.git
$ chmod +x ./esp-v2/docker/serverless/gcloud_build_image

Dockerイメージの作成
$ ./esp-v2/docker/serverless/gcloud_build_image -s $CLOUD_RUN_HOSTNAME \
    -c $CONFIG_ID -p $PROJECT_ID

・・・

0d989395d9d2: Mounted from endpoints-release/endpoints-runtime-serverless
12a2f0c9291b: Mounted from endpoints-release/endpoints-runtime-serverless
e2eb06d8af82: Layer already exists
c93571ebdeb4: Mounted from endpoints-release/endpoints-runtime-serverless
2.32.0-api-gateway-dsbamy37za-an.a.run.app-2021-12-09r0: digest: sha256:b650aeedaec4acc7d857b0f424356655a47c4eb01916551550caa75cd6db6a38 size: 3680
DONE
------------------------------------------------------------------------------------------------------------------------------------------------
ID                                    CREATE_TIME                DURATION  SOURCE                                                                                                       IMAGES                                                                                                                     STATUS
23b03b17-9f1e-4bb9-93f4-33e9d3a14d3f  2021-12-09T10:31:17+00:00  38S
gs://test-cloud-functions-20211208_cloudbuild/source/1639045874.289586-ae21ef3d28dc4aa8a42c50994867148b.tgz  gcr.io/test-cloud-functions-20211208/endpoints-runtime-serverless:2.32.0-api-gateway-dsbamy37za-an.a.run.app-2021-12-09r0  SUCCESS



gcr.io/test-cloud-functions-20211208/endpoints-runtime-serverless:2.32.0-api-gateway-dsbamy37za-an.a.run.app-2021-12-09r0 SUCCESS

serverless:2.32.0



変数定義

ESP_VERSION=2.32.0



ESPv2イメージのコンテナをCloudRunにデプロイ



$ gcloud run deploy ${CLOUD_RUN_SERVICE_NAME} \
  --image="gcr.io/${PROJECT_ID}/endpoints-runtime-serverless:${ESP_VERSION}-${CLOUD_RUN_HOSTNAME}-${CONFIG_ID}" \
  --allow-unauthenticated \
  --platform managed \
  --project=${PROJECT_ID}

Deploying container to Cloud Run service [api-gateway] in project [test-cloud-functions-20211208] region [asia-northeast1]
✓ Deploying... Done.
  ✓ Creating Revision...
  ✓ Routing traffic...
  ✓ Setting IAM Policy...
Done.
Service [api-gateway] revision [api-gateway-00003-fen] has been deployed and is serving 100 percent of traffic.
Service URL: https://api-gateway-dsbamy37za-an.a.run.app



  • POST
  • https://api-gateway-dsbamy37za-an.a.run.app/api/v1/storeLoginHistory



{
    "message": "hoge",
    "user_id": 1000,
    "anonymous_token": "tokendayo2",
    "login_type": "Normal"
}

動いた！

デプロイを確認できたぞい

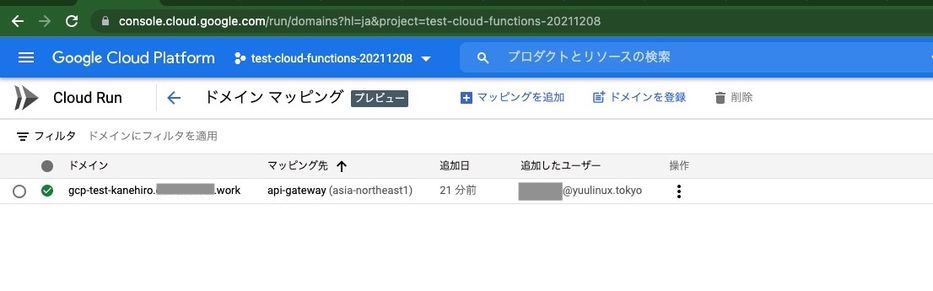

証明書の取得とマッピング





 % gcloud beta run domain-mappings create --service apps-gcp \
   --domain gcp-test-kanehiro.sample-dev.work \
   --platform=managed --region=asia-northeast1


You do not currently have this command group installed.  Using it
requires the installation of components: [beta]


Your current Cloud SDK version is: 366.0.0
Installing components from version: 366.0.0

┌─────────────────────────────────────────────┐
│     These components will be installed.     │
├──────────────────────┬────────────┬─────────┤
│         Name         │  Version   │   Size  │
├──────────────────────┼────────────┼─────────┤
│ gcloud Beta Commands │ 2021.12.03 │ < 1 MiB │
└──────────────────────┴────────────┴─────────┘

For the latest full release notes, please visit:
  https://cloud.google.com/sdk/release_notes

Do you want to continue (Y/n)?  Y



$ gcloud beta run domain-mappings create --service $CLOUD_RUN_SERVICE_NAME \
  --domain gcp-test-kanehiro.sample-dev.work \
  --platform=managed \
  --region=$REGION


  Creating......done.
Waiting for certificate provisioning. You must configure your DNS records for certificate issuance to begin.
NAME         RECORD TYPE  CONTENTS
api-gateway  A            216.239.32.21
api-gateway  A            216.239.34.21
api-gateway  A            216.239.36.21
api-gateway  A            216.239.38.21
api-gateway  AAAA         2001:4860:4802:32::15
api-gateway  AAAA         2001:4860:4802:34::15
api-gateway  AAAA         2001:4860:4802:36::15
api-gateway  AAAA         2001:4860:4802:38::1





１０分ぐらい待ちます。





POSTMANで確認する



  • POST
  • https://gcp-test-kanehiro.sample-dev.work/api/v1/storeLoginHistory
{
    "message": "hoge",
    "user_id": 1001,
    "anonymous_token": "tokendayo3",
    "login_type": "CustomDomain"
}



できた😸
